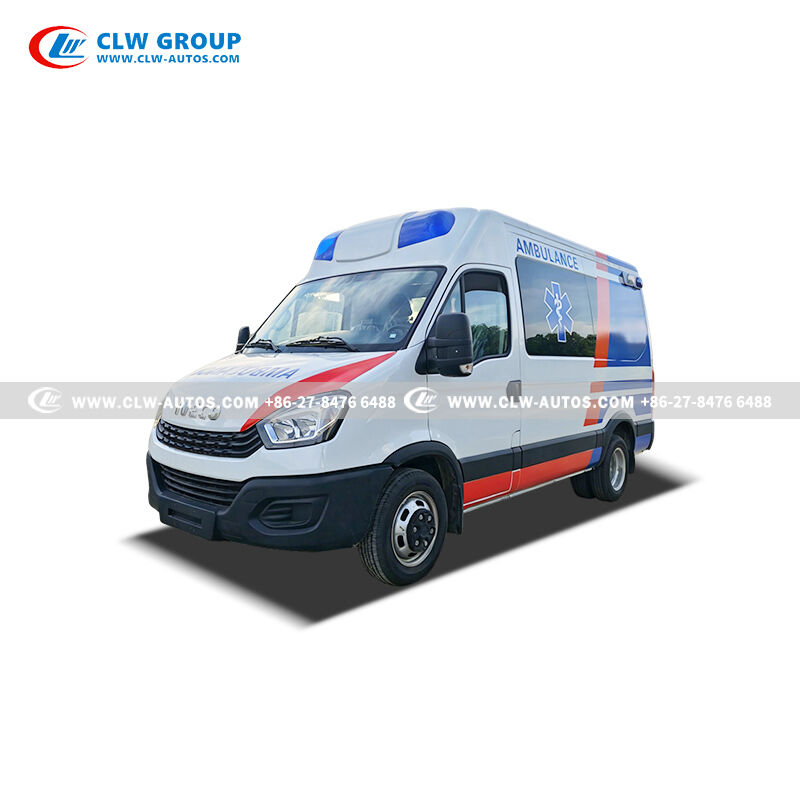

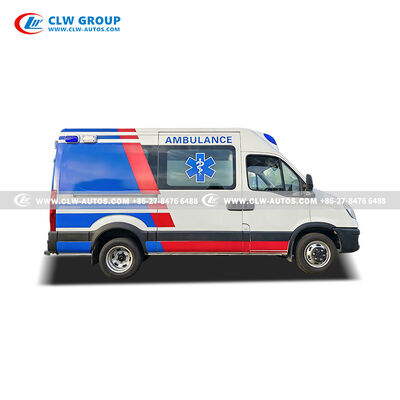

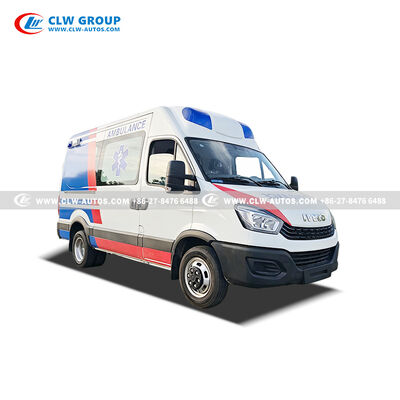

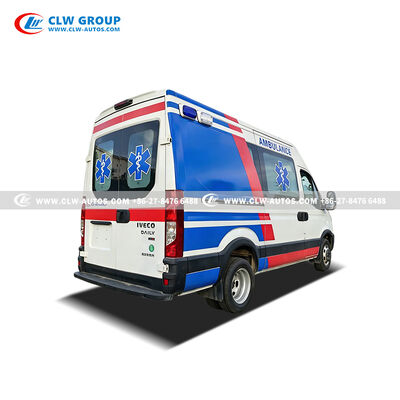

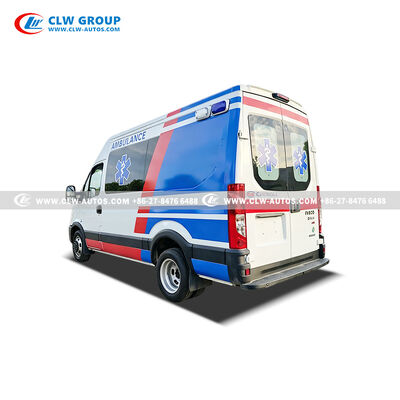

IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher

IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher
IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher

Grande immagine :  IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher

Dettagli:

Luogo di origine: Cina
Marca: CLW GROUP
Certificazione: ISO
Numero di modello: SINOTRUK COME

Termini di pagamento e spedizione:

Quantità di ordine minimo: 1
Prezzo: 35600
Imballaggi particolari: Imballaggio in tessuto per protezione antipioggia
Tempi di consegna: 30 GIORNI
Capacità di alimentazione: 10 pezzi/mese
Contatto
Descrizione di prodotto dettagliata
Materiale: Acciaio al carbonio Modello del motore: Motore diesel turbocompresso avanzato F1A / SOFIM
Tipo di carburante: Diesel Spostamento: 2,0 l - 3,0 l
Norma sulle emissioni: Conforme Euro 5 / Euro 6 Trasmissione: Manuale 5/6 velocità (automatico opzionale)
Sistema frenante: Freni a disco sulle 4 ruote con ABS bombole di ossigeno: 2 unità da 10 litri ad alta pressione
Invertitore di potenza: sinusoide pura 500w Incavi di potere: 4 unità da 220 V
Materiale barella: di alluminio ad alta resistenza
Evidenziare:

Ambulanza IV-ECO con barella automatica

,

ambulanza per il trasferimento dei pazienti con sistema di carico

,

Prime Mover

IVE-CO Patient Transfer Ambulance Transport Type Emergency Vehicle
IVE-CO Advanced Mobile Clinic Ambulance - Fully Equipped Transport Type Emergency Vehicle
Engineered by CLW GROUP, this premium IV-ECO Transport-Type Ambulance combines professional medical configuration with high-performance mobility. It delivers a safe, hygienic, and highly responsive environment for medical transit and urgent patient transfers.
Key Product Highlights
Integrated Power & Control System
  • 500W High-Efficiency Inverter: 1 unit onboard to support critical medical hardware
  • 22V Power Sockets: 4 multi-purpose units strategically placed for easy equipment access
  • Central Control Panel: Features integrated control system with individual switches for ventilating fan, 220V indicator light, air-conditioning, and warm wind
Technical Specifications
Category Item Detailed Specifications
Vehicle Overview Manufacturer CLW GROUP
Drive Type 4x2 Rear-Wheel Drive (4x4 optional for off-road demands)
Overall Dimensions Approx. 5670 × 2011 × 2740 mm (Subject to final layout)
Gross Vehicle Weight (GVW) 4,000 kg
Seating Capacity 7-8 seats (Flexible medical crew layout + patient bed area)
Chassis & Engine Chassis Brand IVEC-O High-Rigidity Special Chassis
Engine Model F1A / SOFIM Advanced Turbocharged Diesel Engine
Fuel Type / Displacement Diesel / 2.0L - 3.0L High-Efficiency Turbo
Emission Standard Euro 5 / Euro 6 Compliant (Tailored to destination country)
Transmission Manual 5/6-Speed (Smooth Automatic Transmission optional)
Oxygen Supply System Oxygen Cylinders 2 units of 10L high-pressure medical oxygen cylinders
Pressure Valves Equipped with premium dual-gauge pressure reducing valves
Cylinder Cabinet Dedicated secure oxygen cylinder cabinet on front right side
Power & Control Power Inverter 1 unit of 500W pure sine wave inverter for medical devices
Power Sockets 4 units of 220V standard medical-grade power sockets
Central Control Panel Integrated cabin electrical switchboard with safety indicators
Patient Transit Stretcher System 1 automatic loading stretcher built from high-strength aluminum
Infusion Rails 1 overhead heavy-duty infusion slide rail with 2 hooks
Safety Handrails Ergonomic yellow high-visibility safety grab rail on top
Cabin Environment Ventilation System 1 high-power electric cabin exhaust/ventilation fan
Sterilization System 1 built-in ultraviolet (UV) air disinfection lamp
Partition Assembly High-polymer partition wall with upper movable sliding window
Floor Assembly Eco-friendly laminated wood with wear-resistant medical flooring
Floor Properties Flame-retardant, anti-slip, mildew-resistant, acid/alkali-resistant
Cabinet Assembly Flat-window medical equipment storage cabinet on rear left side
Auxiliary Seats 1 doctor single seat + 1 two-person long bench with seat belts
Alert & Visuals Warning Lights Long row of high-visibility LED warning lights on front roof
Siren System 100W multi-tone electronic siren with handheld control mic
Exterior Markings Customizable First Aid decals, colors, and logos on request
Medical Waste 1 integrated, easy-to-clean specialized waste bin
Safety Equipment Fire Safety Heavy-duty fire extinguisher stored in rear medical cabinet
IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 0IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 1IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 2IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 3IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 4IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 5IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 6IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 7IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 8IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 9IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 10IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher 11

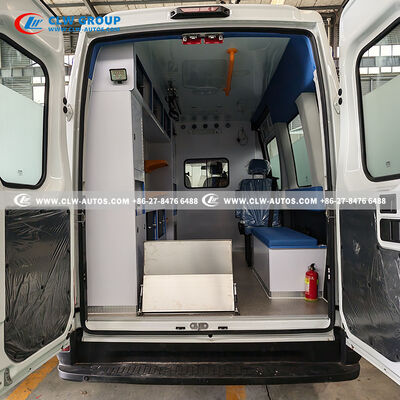

Professional Patient Care & Medical Systems
  • Gas Supply System: 2 units of 10L medical oxygen cylinders with precise pressure-reducing valves
  • Oxygen Cylinder Cabinet: Safely integrated into the front right side of the medical compartment
  • Equipment Storage: Flat-window medical equipment storage cabinet on rear left side
  • Advanced Stretcher System: Automatic loading stretcher made of high-strength aluminum alloy for smooth operation
Safety, Hygiene & Ergonomic Design
  • Full Partition Wall: High-polymer partition with movable sliding window separating driver and medical cabin
  • Seamless Communication: Built-in Intercom System for two-way communication between driver and medical crew
  • Medical-Grade Flooring: Corrosion-resistant laminated wood with flame-retardant, anti-slip, mildew-resistant properties
  • Flexible Seating: 1 single seat and 2-person bench with safety belts on left side
  • Ergonomic Fittings: Overhead infusion slide rail with hooks, yellow safety handrail, and integrated waste bin
Alert & Sterilization Systems
  • Warning System: Front-roof LED warning lights with 100W siren and handheld control
  • Sterilization System: Built-in ultraviolet (UV) disinfection lamp for cabin hygiene
  • Ventilation System: High-power electric ventilation fan
  • Customizable Exterior: First Aid markings, colors, and logos fully customizable to client requirements
