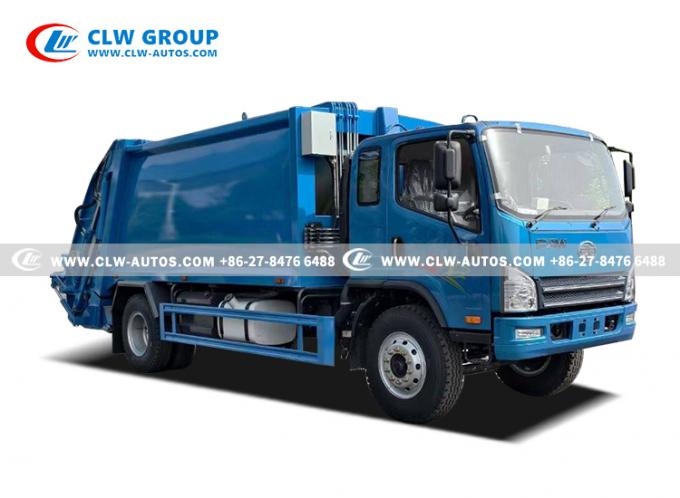

FAW 4x2 14m³ Compactor Garbage Truck – Rear-Loading Waste Compactor with Q345 Steel Body & PLC Hydraulic Control
The FAW 14m³ Compactor Garbage Truck is a heavy-duty rear-loading waste collection vehicle built on a FAW 4x2 chassis with 4,700mm wheelbase. Features include Yuchai 160HP engine (4.26L), FAST 8-speed manual transmission (8F+2R), reinforced axles (front 3.2T / rear 11.5T), 14m³ arc-shaped Q345 carbon steel body (5mm sides/floor), high-pressure hydraulic compaction system, fully sealed leak-proof design, PLC one-touch dumping/compaction control, and air-conditioned cab. Ideal for municipal sanitation, residential communities, commercial districts, industrial waste collection, and landfill transport.
Overview
The FAW 14m³ Compactor Garbage Truck is a professional-grade heavy-duty waste collection vehicle designed for municipal sanitation departments, residential communities, commercial districts, and industrial facilities requiring high-capacity refuse collection and efficient compaction. Built on the proven FAW 4x2 heavy-duty chassis with a 4,700mm wheelbase, this vehicle is powered by a Yuchai 160 HP engine (4.26L displacement) delivering high torque, fuel efficiency, and reliability. The FAST 8-speed manual transmission (8 forward + 2 reverse gears) provides smooth gear transitions and durability. The high-strength arc-shaped garbage compartment is constructed with 5mm-thick Q345 carbon steel on the sides and floor, providing maximum resistance to corrosion, impact, and deformation. The high-pressure hydraulic cylinders ensure fast and efficient compaction, while the fully sealed compression design prevents leakage and odor. The PLC control system enables one-touch dumping and compaction. The cabin features air conditioning for operator comfort.
Key Features
- FAW 4x2 Chassis: 4,700mm wheelbase, front axle 3.2T, rear axle 11.5T. Superior stability and maneuverability.
- Yuchai 160HP Engine: 4.26L displacement, high torque, fuel-efficient, stringent emission compliance.
- FAST 8-Speed Transmission: 8 forward + 2 reverse gears, smooth shifts, durable for heavy loads.
- 14m³ Q345 Carbon Steel Body: Arc-shaped, 5mm sides and floor. High-strength, corrosion-resistant, impact-resistant.
- High-Pressure Hydraulic Compaction: Fast efficient compaction, increases load capacity, reduces trips.
- Fully Sealed Leak-Proof Design: Prevents liquid leakage and odor. Suitable for residential and commercial areas.
- PLC Hydraulic Control: One-touch dumping and compaction. User-friendly, reduces training time.
- Air-Conditioned Cab: Driver comfort for long collection shifts. Easy-access controls and good visibility.
- Optional Mechanisms: Side-loading, rear-loading, lift mechanisms available. Easy-access service points for quick repairs.
- Applications: Municipal waste, residential collection, commercial district waste, industrial garbage, landfill transport.
Applications
- Municipal waste management (urban and routine garbage collection)
- High-density areas (cities, residential zones, commercial districts)
- Industrial waste collection
- Landfill transport and transfer station operations
- Household and commercial refuse collection
Technical Specifications
| Chassis model |
CA6160P412L5EYA83 |
| Driving model |
4X2 |
| Cab |
One Row and half |
| Wheelbase |
4700mm |
| External dimension (L X W X H) |
7500*2500*2950mm |
| Engine Model |
YC4E160-33 |
| Engine Type |
Diesel engine, 4 cylinders in a line, Vertical, inline, water-cooled, four-stroke, direct injection |
| Horsepower |
160hp |
| Max output power |
118kw |
| Rated rotation |
2600r/min |
| Emission standard |
Euro 2 |
| Displacement |
4.26L |
| Max torque |
520N.m |
| Max torque rated rotation |
1700r/min |
| Gear box |
Manual type, FAST 8JS75TC, 8 forward gears and 2 reverse |
| Axle loading (front and rear) |
3.2T ; 11.5T |
| Speed ratio |
6.833 |
| Wheel track |
1800mm |
| Clutch |
Ф350 |
| Fuel box |
200L, iron material |
| Tyre |
10.00R20 18PR |
| Max. driving speed |
95km/h |
| Garbage Container Size |
14 m³ |
| Tanker body material |
Quality high tensile Q345 carbon steel |
| Shape |
Rectangular box, arc-shaped rear |
| Thickness |
Side 5mm, bottom 5mm |
| Filling hopper volume |
0.7 m³ |
| Compaction ratio |
0.7-0.85T/m³ |
| Compacting cycle time |
≤23 s |
| Loading cycle time |
≤10 s |
| Unloading cycle time |
≤45 s |
| Oil pump displacement |
40 ml/r |
| Hydraulic oil box size |
60 L |
| PTO operation method |
Pneumatic |
| Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
Optional Equipment
- Electrophoresis treatment for whole garbage compactor body
- Remote control function
- Optional all sealing waste collection hopper
- Pneumatic cover to avoid waste flying away during driving
- Rear swing arm bucket
- A complete set of double pump equipment

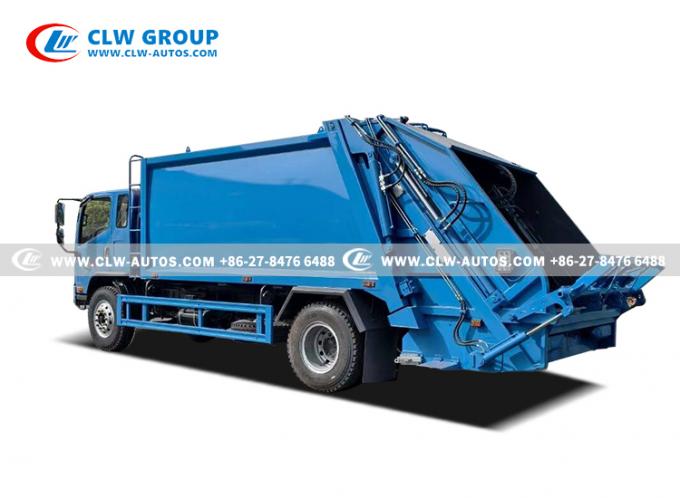

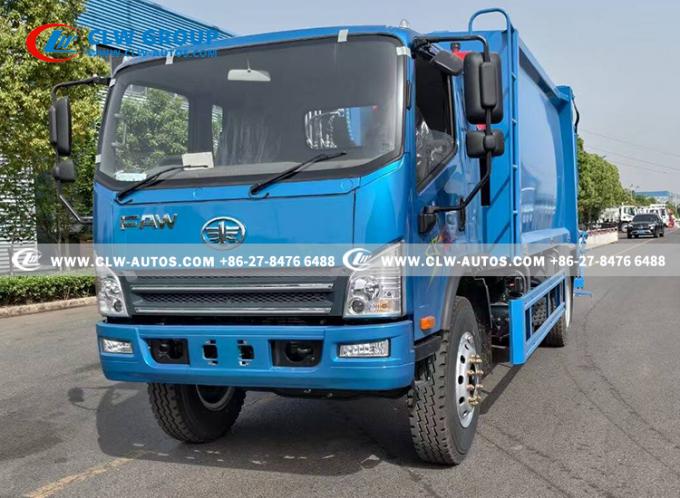

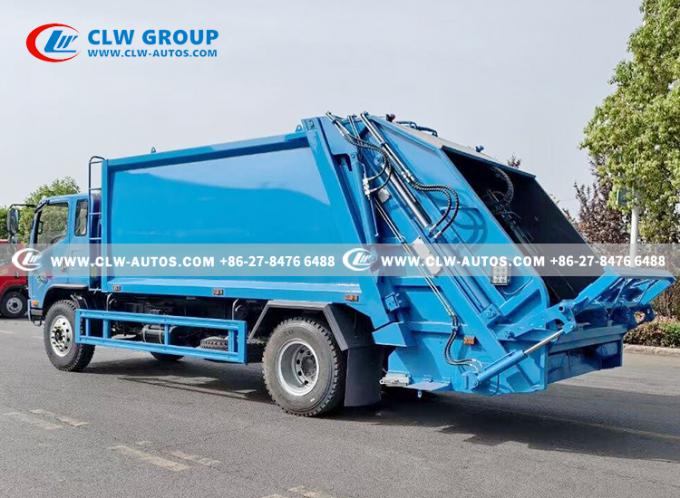

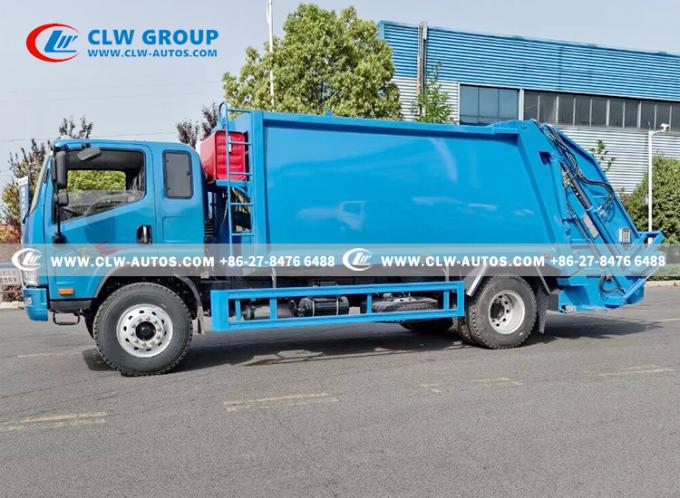

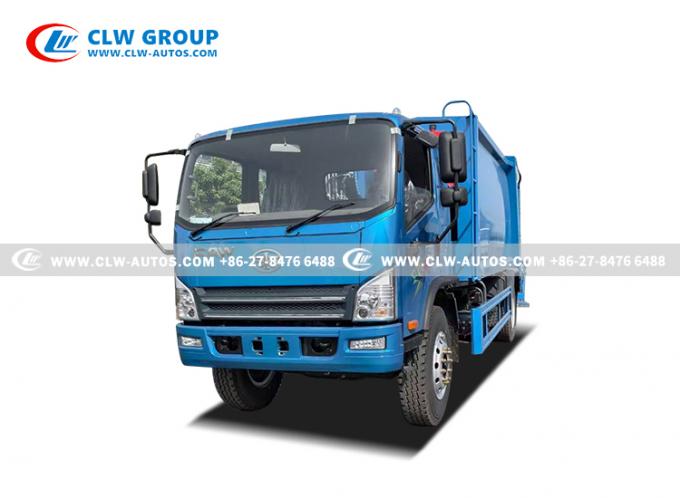

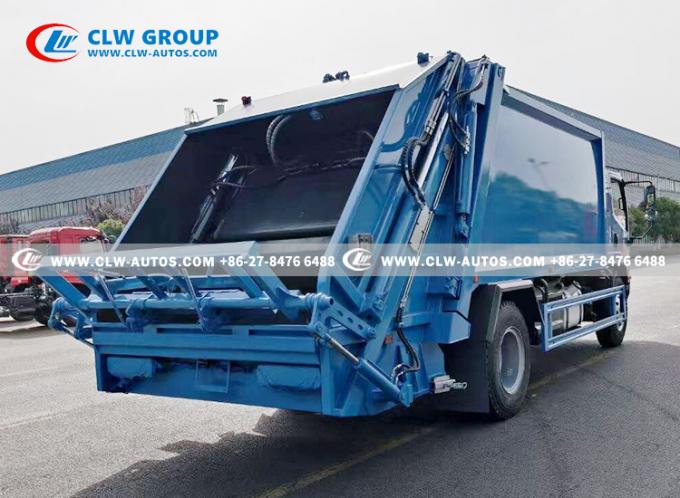

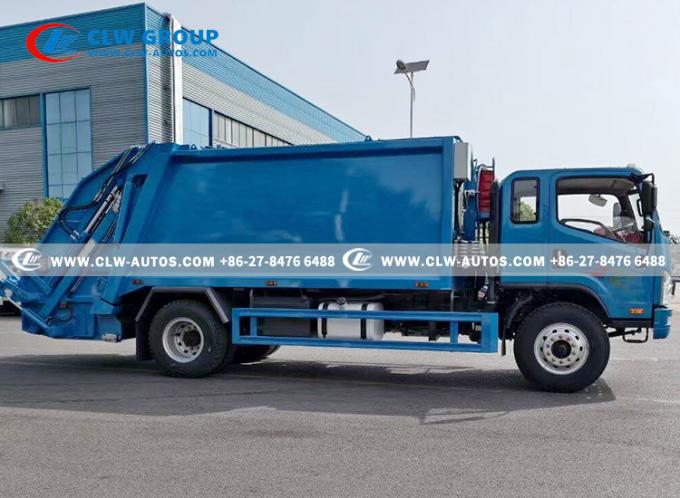

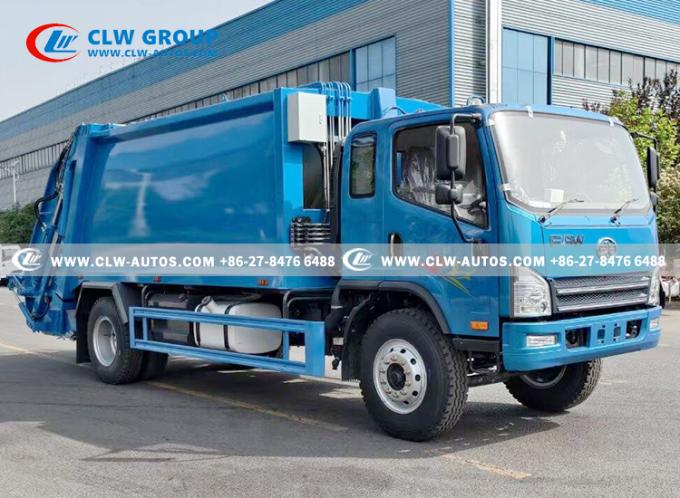

Product Images
